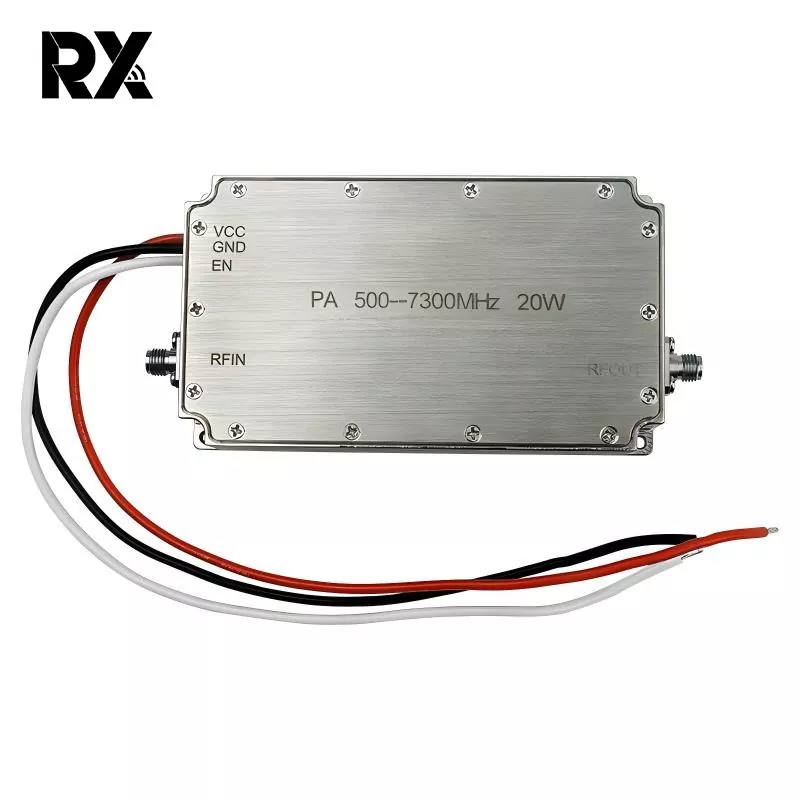

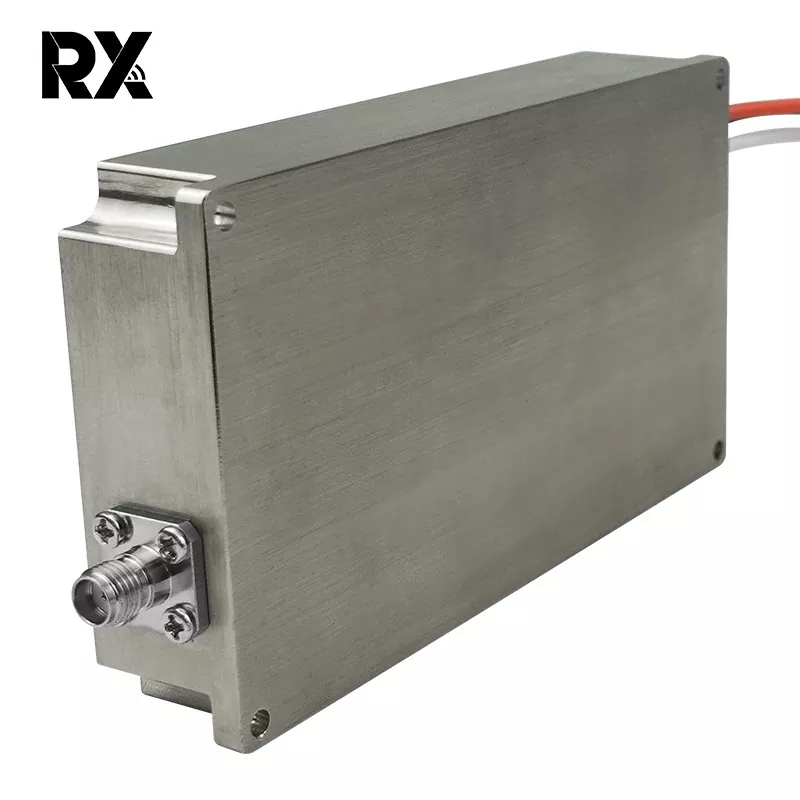

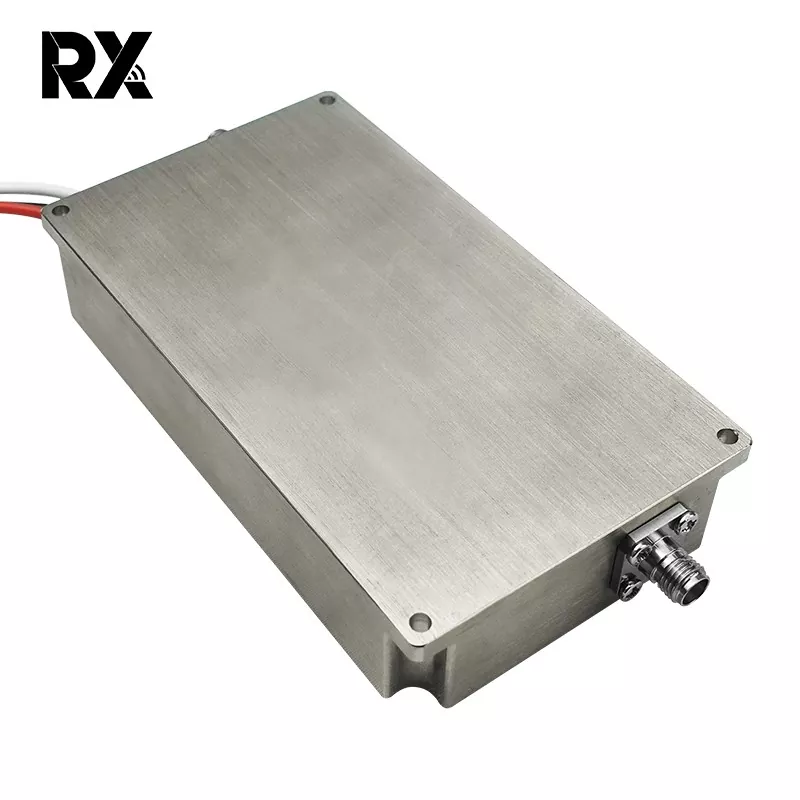

20W 500-7300MHz Ultrawideband Power Amplifier

Iki minangka Amplifier Daya Ultrawideband 20W 500-7300MHz Tanpa-sinyal. Iki nduweni peran penting ing pangiriman daya lan proteksi garis ing sistem kasebut. Sanajan ora menehi keuntungan dhewe, nanging bisa nyuda, cocog, utawa ngisolasi sinyal daya dhuwur nganti 20W ing bandwidth ultrawide 500 MHz-7.3 GHz.

Kirim Pitakonan

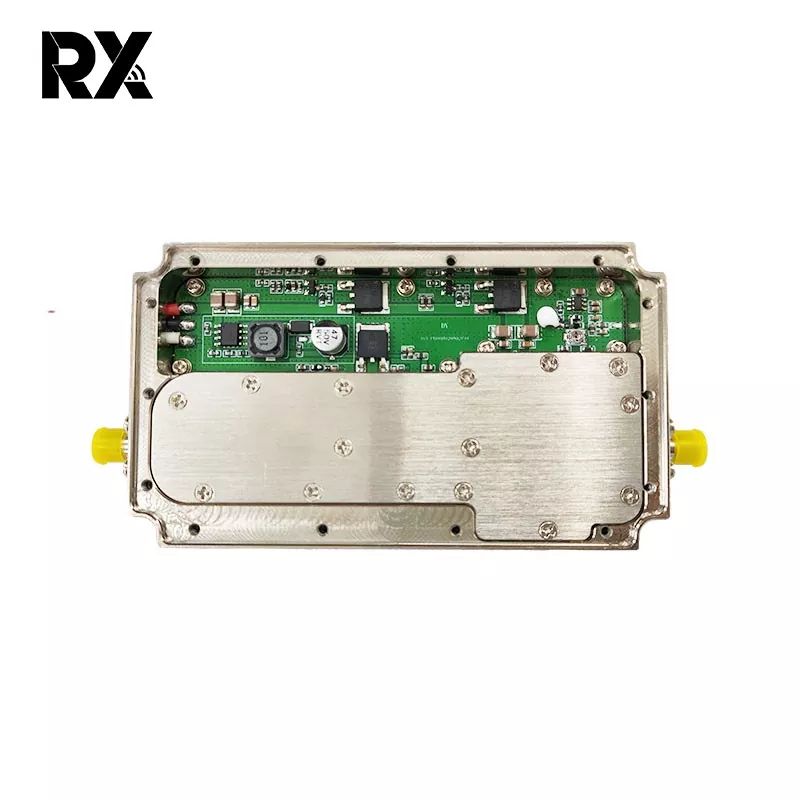

Deskripsi Produk

Kaluwihan utama:

Chip amplifier daya 20W 500-7300 MHz iki nyakup 500-7300 MHz, bebarengan nutupi L, S, C, lan bagéan saka pita X, mbisakake sawetara panggunaan ing siji chip. Iki nyuda jumlah komponen frekuensi-splitter, saéngga ngompres ukuran lan ngirit biaya. Iku nggampangake ngoper antarane band gangguan, mbusak perlu kanggo sumber sinyal external lan antena. Sawijining chip broadband bisa ngatasi gangguan saka frekuensi rendah, pita konvensional, nganti frekuensi dhuwur.

Fungsi inti:

Ing link transceiver broadband, serep daya drive 20W ngluwihi watesan saka tataran sadurunge kanggo tingkat sing chip sakteruse bisa nangani, nyegah LNA / mixer sakteruse saka teken utawa burned metu. Tahan daya cepet ≥ 20 W. Nalika daya dibayangke ana amarga antena mismatch utawa mbukak sirkuit ing tataran sakteruse, iki 500-7300 MHz 20W amplifier daya nyerep / attenuates energi dibayangke kanggo nglindhungi transistor daya ing tataran sadurunge.

Penguat daya iki, dipasang ing antarane rong tahapan penguat daya, bisa nyuda mundhut bali kanthi 3-6 dB, nyuda refleksi antar-tataran, nyuda osilasi diri, lan nambah isolasi antar-tataran.

Spesifikasi Power Amplifier Ultra-Wideband 20W 500-7300MHz (TC=25 ℃)

Ora.	Katrangan	Simbol	Min	Tipe		Maks	Unit	Cathetan
1.	Frekuensi operasi	BW	500			7300	MHz
2.	Daya Input	Pin		0			dBm
3.	Daya Output CW	Psat	42.5	43		44	dBm	Gelombang Kontinu
4.	Power Gain	Gp		43			dBm	@ Pin=0 dBm
5.	Daya Gain Flatness	△Gp		± 1.5			dB	@ Pin=0 dBm
6.	Input Bali Mundhut	S11		-15			dB
7.	Tegangan operasi	Vdc	24	30		36	V
8.	Konsumsi Saiki	A		2		3	A	@ Pout=10~15W
9.	Input Konektor RF		SMA, wadon
10.	Output Konektor RF		SMA, wadon
11.	Bobot			0.278		0.3	Kg
12.	Dawane * Jembar * Dhuwur		1056020			mm
13.	Daya Input Maks	PinMax	≤10			dBm

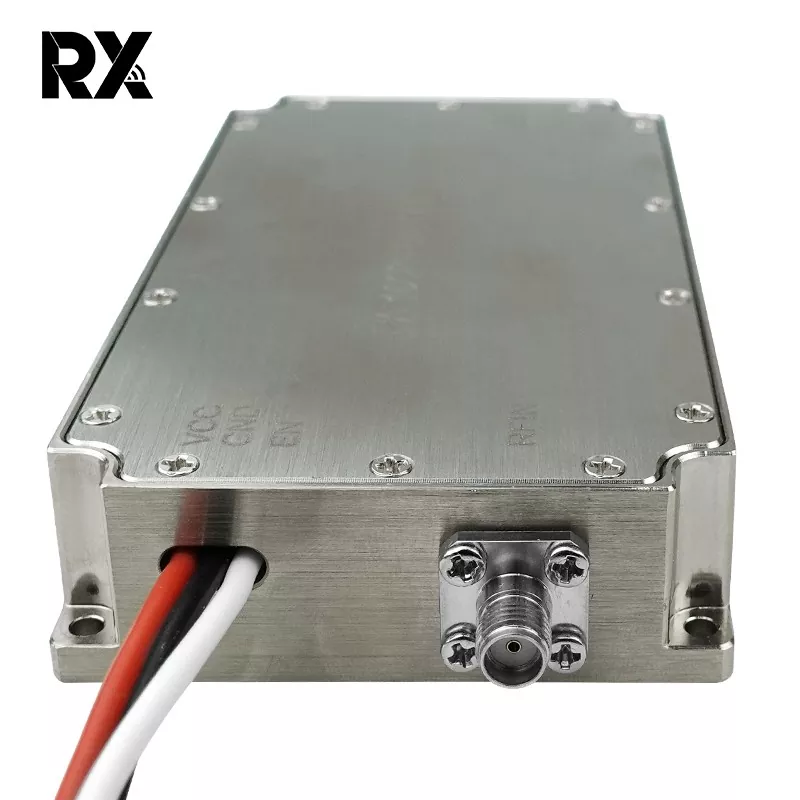

14.	Definisi Antarmuka	VDD	A1		24Vdc
		GND	A2		lemah
		Aktifake	1		5V~Vdd:ON 0V: MATI
	Dimensi sakabèhé	Cathetan: 1, Ukuran sakabèhé mung kanggo referensi; 2, Ukuran bisa ditambah utawa suda miturut syarat pelanggan; 3, Posisi antarmuka input, antarmuka output lan antarmuka sumber daya bisa diganti miturut kabutuhan nyata pelanggan;

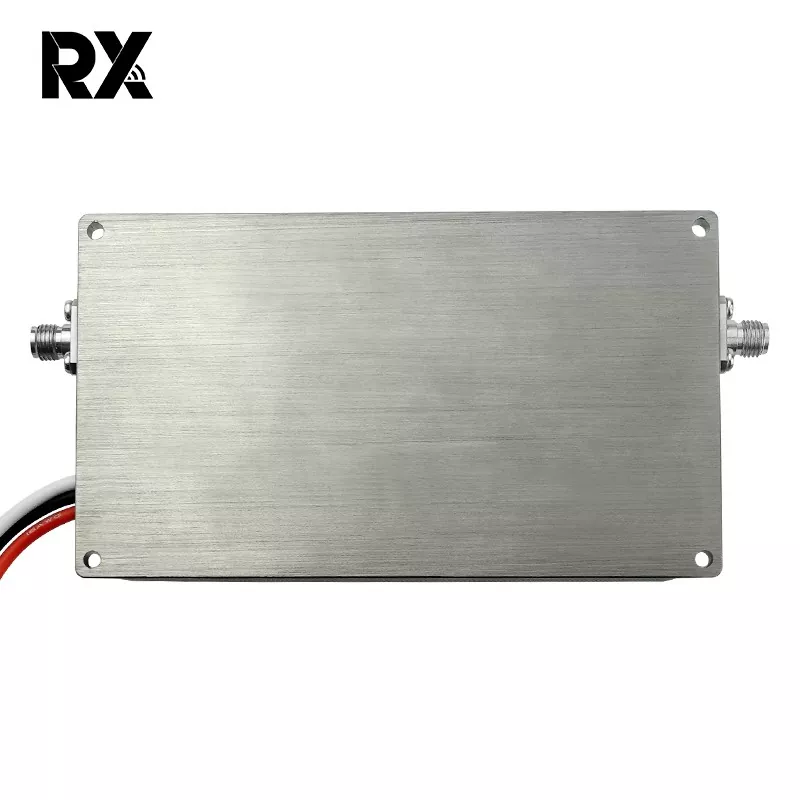

	Dimensi sakabèhé

Kurva kinerja (sampel sing diukur nyata, 25 °C, 28 V)

Frekuensi	mlebu	24V			30V			36V
(MHz)	(dBm)	Pout (dBm)	aku(A)	η(%)	Pout (dBm)	aku(A)	η(%)	Pout (dBm)	aku(A)	η(%)
500	0	39.8	1.37	29,04%	41.39	1.58	29,06%	42.6	1.74	34,86%
600	0	40.9	1.3	39,43%	42.65	1.52	40,37%	43.95	1.78	46,50%
700	0	40.99	1.33	39,35%	42.89	1.55	41,84%	44.1	1.85	46,31%
800	0	41.3	1.4	40,15%	43.23	1.62	43,29%	44.7	1.79	54,96%
900	0	41.4	1.5	38,34%	43.35	1.71	42,16%	44.85	1.91	53,31%
1000	0	41.4	1.52	37,84%	43.38	1.74	41,72%	44.87	1.94	52,73%
1100	0	41.8	1.62	38,93%	43.67	1.84	42,18%	45	2.02	52,18%
1200	0	41.88	171	0,38%	43.6	1.92	39,77%	44.75	2.07	48,07%
1300	0	41.8	1.75	36,04%	43.52	1.98	37,86%	44.66	2.136	45,63%
1400	0	41.76	1.69	36,97%	43.43	1.9	38,65%	44.63	2.059	47,01%
1500	0	41.65	1.66	36,70%	43.23	1.85	37,91%	44.31	1.97	45,65%
1600	0	42	1.71	38,62%	43.61	1.92	39,86%	44.6	2.038	47,17%
1700	0	41.88	1.73	37,13%	43.45	1.95	37,83%	44.4	2.06	44,57%
1800	0	41.75	1.73	36,04%	43.34	1.98	36,33%	44.33	2.1	43,02%
1900	0	42	1.74	37,95%	43.57	1.95	38,89%	44.6	2.1	45,78%
2000	0	42.3	1.81	39,09%	43.96	2.06	40,27%	44.89	2.26	45,47%
2100	0	42.4	1.83	39,57%	44	2.11	39,68%	44.93	2.33	44,52%
2200	0	42.3	1.78	39,75%	43.84	2	40,35%	44.82	2.24	45,15%
2300	0	42.4	1.88	38,52%	43.96	2.02	41,07%	44.88	2.22	46,19%
2400	0	42.4	2	36,20%	44	2.16	38,76%	44.69	2.39	41,07%
2500	0	42.4	2.12	34,15%	43.9	2.38	34,38%	44.56	2.7	35,28%
2600	0	42.2	2.15	32,16%	43.6	2.39	31,95%	44.1	3	28,56%
2700	0	42.3	2.15	32,91%	43.94	2.72	30,36%	44.7	3.16	31,13%
2800	0	42.2	2.04	33,90%	43.96	2.55	32,53%	44.83	2.96	34,24%
2900	0	41.9	1.99	32,43%	43.71	2.39	32,77%	44.68	2.7	36,27%
3000	0	42.2	1.94	35,64%	43.97	2.25	36,96%	45.11	2.46	43,95%
3100	0	41.85	1.97	32,38%	43.66	2.17	35,68%	44.68	2.29	42,76%
3200	0	41.95	2	32,64%	43.7	2.3	33,97%	44.81	2.24	45,04%
3300	0	41.88	2.15	29,88%	43.58	2.38	31,94%	44.66	2.2	44,31%
3400	0	41.74	2.18	28,53%	43.54	2.42	31,12%	44.64	2.3	42,18%
3500	0	41.42	2	28,89%	43.28	2.43	29,19%	44.34	2.44	37,11%
3600	0	41.22	2	27,59%	43.17	2.44	28,35%	44.31	2.52	35,68%
3700	0	40.92	2	25,75%	42.88	2.34	27,65%	44	2.62	31,96%
3800	0	40.79	2.17	23,03%	42.51	2.43	24,45%	43.63	2.52	30,51%
3900	0	41.15	2.15	25,26%	42.8	2.43	26,14%	43.84	2.52	32,02%
4000	0	41.58	2.09	28,68%	43.1	2.41	28,24%	44.11	2.59	33,16%
4100	0	41.72	2.04	30,35%	43.52	2.39	31,37%	44.1	2.59	33,08%
4200	0	41.8	1.88	33,55%	43.22	2.22	31,52%	44.1	2.57	33,34%
4300	0	42.13	1.92	35,44%	43.59	2.21	34,47%	44.4	2.58	35,58%
4400	0	41.87	1.97	32,53%	43.38	2.2	33,00%	44.26	2.45	36,28%
4500	0	41.73	2	31,03%	43.31	2.19	32,62%	44.2	2.47	35,50%
4600	0	40.96	2	25,99%	42.77	2.18	28,93%	43.73	2.48	31,73%
4700	0	40.49	2.01	23,21%	42.3	2.1	26,96%	43.35	2.43	29,67%
4800	0	41.18	1.98	27,61%	42.9	2.14	30,37%	44.1	2.36	36,31%
4900	0	40.46	2	23,16%	42.23	2.15	25,91%	43.4	2.22	32,85%
5000	0	40.91	2	25,69%	42.6	2.13	28,48%	43.83	2.25	35,78%
5100	0	40.64	2.14	22,56%	42.3	2.25	25,16%	43.52	2.23	33,62%
5200	0	40.78	2.25	22,16%	42.44	2.42	24,16%	43.63	2.35	32,72%
5300	0	40.91	2.21	23,25%	42.52	2.41	24,71%	43.65	2.52	30,65%
5400	0	40.92	2.32	22,20%	42.57	2.54	23,72%	43.64	2.52	30,58%
5500	0	41.28	2.32	24,12%	42.91	2.53	25,75%	43.87	2.64	30,78%
5600	0	41.31	2.32	24,28%	43	2.52	26,39%	44.04	2.62	32,25%
5700	0	41.51	2.34	25,21%	43.28	2.55	27,82%	44.27	2.64	33,75%
5800	0	41.62	2.35	25,75%	43.3	2.57	27,73%	44.26	2.67	33,29%
5900	0	41.13	2.32	23,30%	42.9	2.49	26,10%	43.92	2.58	31,86%
6000	0	41.27	2.33	23,96%	43	2.5	26,60%	43.03	2.57	26,06%
6100	0	41.11	2.35	22,89%	42.78	2.51	25,19%	43.75	2.58	30,64%
6200	0	40.64	2.28	21,18%	42.23	2.45	22,74%	43.14	2.49	27,59%
6300	0	41.15	2.24	24,24%	42.71	2.41	25,81%	43.54	2.46	30,62%
6400	0	41.06	2.2	24,17%	42.71	2.38	26,14%	43.33	2.46	29,17%
6500	0	40.67	2.18	22,30%	42.27	2.34	24,02%	43.11	2.43	28,07%
6600	0	40.67	2.2	22,10%	42.29	2.37	23,83%	43.17	2.49	27,78%
6700	0	40.62	2.18	22,05%	42.33	2.35	24,26%	43.19	2.49	27,90%
6800	0	40.95	2.2	23,57%	42.47	2.37	24,84%	43.36	2.521	28,66%
6900	0	40.66	2.15	22,56%	42.28	2.35	23,98%	43.18	2.53	27,40%
7000	0	41.28	2.12	26,39%	42.91	2.34	27,84%	43.75	2.51	31,49%
7100	0	40.73	2.04	24,16%	42.34	2.27	25,17%	43.42	2.45	29,90%
7200	0	41.15	1.98	27,42%	42.85	2.52	25,50%	43.92	2.39	34,39%
7300	0	41	1.88	27,90%	42.74	2.12	29,55%	43.68	2.31	33,67%
